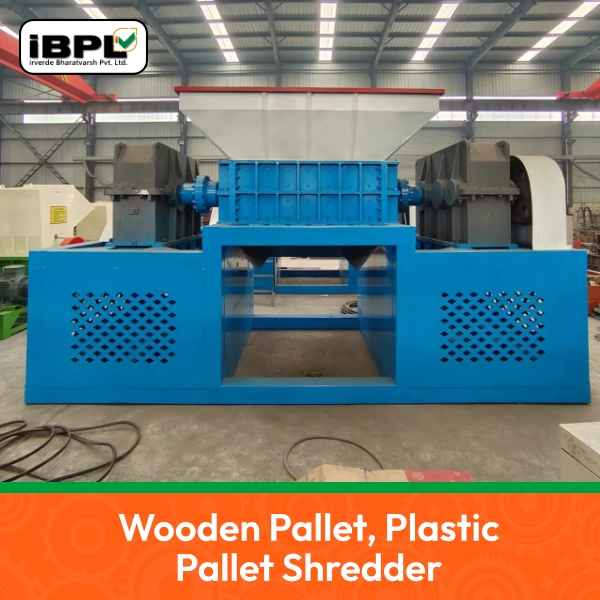

Wooden pallet, plastic pallet shredder

Product Description
Technical Parameters

Wooden pallet, plastic pallet shredder Application:

Plastic pallet shredder is manufactured with Euro advanced technology, they are suitable for recycling all plastic pallets. It belongs to the single shaft shredder. If you choose the small models, the pallets should be cut into small pieces before feeding, but the bigger shredders can process the whole pallets directly. And It can be used for wood pallets also. By different requirements such as the input and output size of the material, capacity, etc, Irverde Bharatvarsh Pvt. Ltd can work out the best suitable proposal to meet our customer’s request.

Wooden pallet, plastic pallet shredder Description:

Plastic pallet shredders of Irverde Bharatvarsh Pvt. Ltd are manufactured with Euro-advanced technology, they are suitable for recycling all plastic pallets. Swing arm single shaft shredder machine is new designed especially for shredding various big solid materials, unmanageable materials, plastic containers and barrels, plastic film, plastic pipe, fiber, and paper that the normal crusher can’t handle. The materials are pushed into the shredding chamber by hydraulic. An Independent drive system and solid structure make the running stably.

Swing arm single shaft shredders are heavy-duty machines suitable for processing a wide range of materials, such as plastic pallets, plastic barrels, wood pallets, and relatively large volume materials. This range of shredders is ideal for the size reduction of flexible and/or medium hardness, voluminous products often loaded in bales. The fast acting, PLC-controlled swing pusher automatically forces the material to the rotor according to motor loading, maximizing material throughput. Machine capacities typically range between 1,500 kg/hr –9,000kg/hr+ depending on the model, material type and application.

Wooden pallet, plastic pallet shredder Component:

Hydraulic-driven swing pusher: To push the objects close to the rotary cutters to achieve efficient shredding performance
Heat treated rotor knives: Special DC53 steel (hardened) four edges use before the replacement
V-cutting rotor design: with staggered cutter positioning
Wear Resistant: Tungsten surface coating for abrasive applications
Easy operation: Simply press the buttons on the control panel to control every movement, and “auto mode” can be selected on the control panel for fully automatic operation
Replaceable screen at the outlet: For controlling the output granules below certain size. Size of the screen mesh can be customized according to your need
PLC control: Making it easier for fault diagnosis and maintenance
Hydraulic System: The pressure and rate of flow can be adjusted according to different materials.

Wooden pallet, plastic pallet shredder Features:

Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material.
PLC control system with automatic overload protection and auto-reverse switch.
Unique hydraulic pushing system accelerates the shredding speed, for light materials particularly.
Each dynamic blade has four cutting edges which enable reutilization after being abraded, by rotating 90 degree.
Each fixed blade has two cutting edges which enable reutilization after being abraded, by rotating 180 degree.
Quiet operation at low speed.
Screen perforation is adjustable according to customers’ requirement.
The shredders can be adjusted according to customer-specific requirements for throughput volume, material to be processed, etc..

Model	PNDS1200B48	PNDS1500B48	PNDS1800B48	PNDS2000B48
Motor Power（kw）	75	90	55+55	75+75
Hydraulic power（kw）	5.5	5.5	5.5	5.5+480
Rotating diameter（mm）	480	480	480	480
Fixed knife	3PCS	3PCS	3PCS	3PCS
Rotating knife	70PCS	102PCS	132PCS	144PCS
