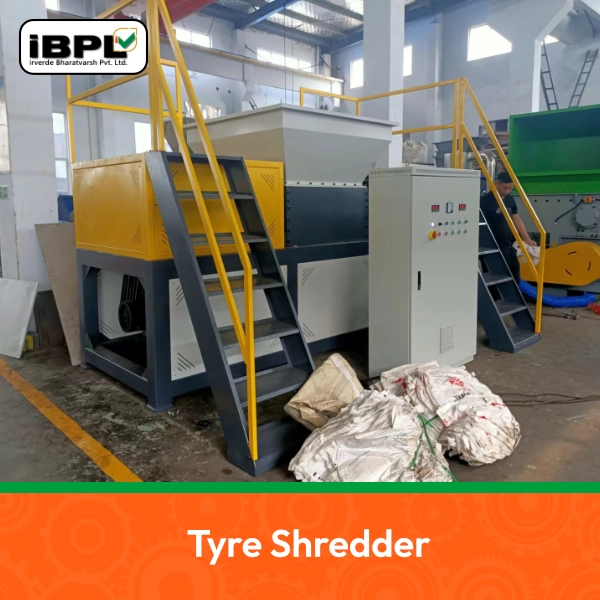

Tyre shredder

Product Description

Waste Car Tire Truck Tyre Rubber Shredder Blades Knives is one of the important parts of the shredder. The quality and correct installation of the blade largely determine the use effect and life of the shredder. Generally, the spiral mounting method is adopted, and the spacer sleeve is separated in the middle. The thickness of the blade should be 0.2 to 0.3 thick to prevent the blade from colliding during operation and choose a reasonable thickness and number of teeth according to the size of the product.

With the development and innovation of the blade industry, the quality of the raw materials of the blade is increasing. The shredder blades are commonly used in a variety of materials, and the materials are generally selected according to different processing objects:

Common materials used in the plastic industry are 42CrMo, W5SiCr, SKD-11;
Common materials used in the metal industry are: 6CrW2Si, Cr12Mov, LD, H13;
Common materials used in the wood industry are: 5WSiCr, 6CrW2Si, SKH, SKD-11, D2;
The heat treatment reached HRC 55-57.

According to the material of the shredder shredded product, choose the appropriate blade. For rubber, the shredding of the film generally adopts the blade of Cr12Mov. For the shredding of wood and plastic, the blade of 55SiCr is generally used. For shredded scrap, popped flower and flower iron, a blade using H13 is suitable because H13 is a hot work die steel which is a steel formed by adding alloying elements to carbon steel. It has good comprehensive performance at medium temperature, high hardenability and low heat treatment deformation rate, high-temperature resistance, and low deformation. Therefore, it is more suitable for shredding metal products.

Commonly used twin-shaft shredder blades. The inner hole is generally an inner hexagon, and the outer circumference commonly has three claws, six claws, eight claws, and twelve claws. The number of jaws, the clearance and the distance from the blade to the spacer determine the size of the shredded material. Generally, the shredder blades are available in diameters from 200mm to 500mm and thicknesses from 20mm to 55mm. They can also be customized according to customer needs.

Model	PNGS-800	PNGS-1000	PNGS-1200	PNGS-1500	PNGS-2000
Shredding Chamber Size(mm)	750*790	960*790	1140*1160	1340*1360	1540*1540
Rotor diameter (mm)	850	1030	1280	1500	2000
Speed (RPM)	40	36	30	23	17
MAX Pipe diameter (mm)	630	800	1000	1200	1600
Hydraulic System Motor (kw)	11	15	15	15	18.5
Main Motor (kw)	30+30	37+37	45+45	55+55	75+75
Output (kg/h)	800-1000	1000-1500	1200-1800	1500-2000	2000-3000
