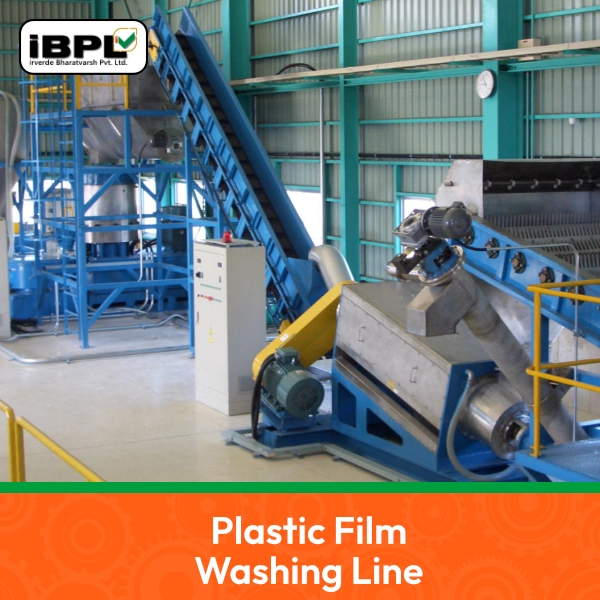

Plastic film washing line

Product Description
Technical Parameters

Agricultural PP LDPE PE Plastic Film Washing Line Application Areas:

PP/PE/LDPE plastic film washing line of Irverde Bharatvarsh Pvt. Ltd is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films, PE waste film, PP waste film, PVC waste film, industrial film, printed film, etc.

Agricultural PP LDPE PE Plastic Film Washing Line Description:

PP PE plastic film washing line is widely used for washing and recycling used PP/PE plastic soft plastic, such as shopping bags, packing films, garbage bags, woven bags, non-woven bags, and films. This recycling machine can crush, wash, and dry the dirty soft plastic into clean film flakes. After plastic film/bag flakes are cleaned, you can make them into pellets/granules with the next process, which is called the plastic film pelletizing machine. This plastic film washing line is highly automated, low in consumption, labor-saving, power-saving, and water-saving, and easy to maintain. With advanced design, concepts, and technologies to suit different statuses of waste plastic bags/films, this PP PE plastic film washing machine could be laid out in an “L”, “S” or “U” shape according to different workshops.

Agricultural PP LDPE PE Plastic Film Washing Line Process Flow:

NO.	Process	Machine	Description
1	Send the film and bags to the wet crusher machine	Conveyor with Metal Detector(Optional)	It separates impurities such as metals in the films and bags, Send the materials to the wet crusher machine
2	Cuts the films and bags into small pieces size	Wet Crusher Machine	A wet crusher cuts the PP / PE film into small pieces approximately 10-20mm in size and moves on to the next piece of equipment.
3	Send the films and bags to the Floating Washing machine	Screw Feeder	Put the films and bags into the Hot washer to clean
4	The first time Floating wash the bags and films	Floating Washing Tank	As the PP / PE films enter the friction washer, the plastic film rubs against each other at high speeds getting rid of hard-to-remove contamination.
5	Feeding bags and film scraps to friction washer	Screw Feeder	Put the films and bags into the High-speed Friction Washer to clean
6	Separate the contamination from film and bags	High-Speed Friction Washing Machine	After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
7	The second time Floating wash the bags and films	Floating Washing Tank	It is used in cleaning film and bags, making the film cleaner.
8	Dry the film and bags	Horizontal Dewatering Machine	The dewatering machine uses centrifugal force to spin water moisture off the films and bags.
9	Hot air to dry the films and bags	Pipeline Dryer	Using the hot air to take the humidity away from the clean material.
10	Storage dry pieces of films and bags	Storage silo	A storage tank for the clean, dry pieces of PP PE films and bags.
11	make film and bags into granules(Optional)	Pelletizer / Extruder	We offer both single-screw extruders and twin-screw extruders. Based on your requirements, we offer both one-stage and double-stage pelletizing setups where granules can be formed using a granulator or water-ring cutting.

Model	PNQF-300	PNQF-500	PNQF-1000
Material	PP,PE film	PP,PE film	PP,PE film
Power	100kw	150kw	280kw
Capacity	300kg/h	500kg/h	1000kg/h
Water Consumption	4-6litres/kg	3-6litres/kg	2-3litres/kg
End Products Humidity	<=5%	<=5%	<=5%
