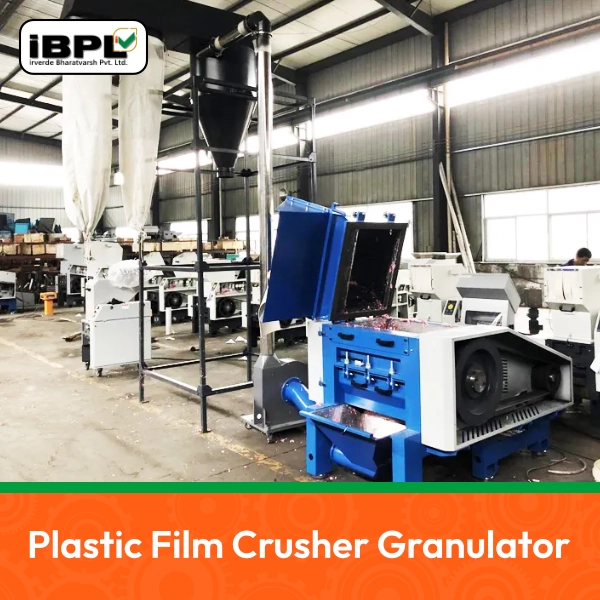

Plastic film crusher granulator

Product Description
Technical Parameters

Application:

The design of the small cold pressing plastic granulator machine has good reliability, maintenance, and stability and is specially used for the granulation recovery of CPE, CPP, PE, PO, PP, BOPA, PET, PVC, and other thin film edges.

Structure introduction:

The small cold pressing plastic granulator machine consists of the following components: an electric mechanism, feeding mechanism, pressing device, transmission system, and shear component.

Working principle:

When the film scraps are spit out from the film making machine, they are immediately sent to the feeding mechanism of the granulator. The feeding mechanism sends the materials to the pressing device. After the materials are compacted, they are then transferred to the shearing assembly to shear the materials into crushed, bagged, and completed for recycling.

This small cold pressing plastic granulator machine does not require heating and consumes a small amount of electricity (3KW). It directly compacts the plastic and then cuts and pellets it. The plasticizing performance of the product remains consistent with that of the original film without changing the chemical composition of the material. It has low noise and no dust. Because the granular specific gravity is not much different from that of plastic granules, 30%-40% can be added. It is not easy to cause bridging and the product is not easy to have crystal points. This machine is an ideal replacement for crusher regenerators.

Features:

Because the small cold pressing plastic granulator machine presses the film directly and does not change the chemical composition, the granular product can be recycled efficiently. The main motor adopts a frequency converter to adjust the speed, save energy, adjust the speed steplessly, is conducive to environmental protection, has a simple structure, is easy to operate (single-person operation), and has a high degree of automation.

Film edge material input transmission system transmission:

Associated with the film machine, in the process of membrane mechanism filmmaking, the removed film edge material can be immediately fed into the feed mechanism of the granulator. The feeding mechanism inputs the material into the press device, and irregular edge kerats are pressed into a neat pattern belt, and then transferred from the transmission line system to the shear component, shearing into granular fragments, and completing instantaneous recovery.
Because of the cutting machine: the edge material cut by the cutting machine is rolled onto the paper core, and the rolled material is sent to the granulator for granulation.

Model	WRLP-3	WRLP-5.5	WRLP-7.5
Power(kw)	3	5.5	7.5
Capacity(kg/h)	≈150m/min		≈250m/min
Capacity(kg/h)	≈100~150kg/h		≈180~250kg/h
Power	Ac380v 50/60Hz
Dimensions (mm)	10506301850mm		12506302050mm
Weight	≈400kg	≈420kg	≈500kg
