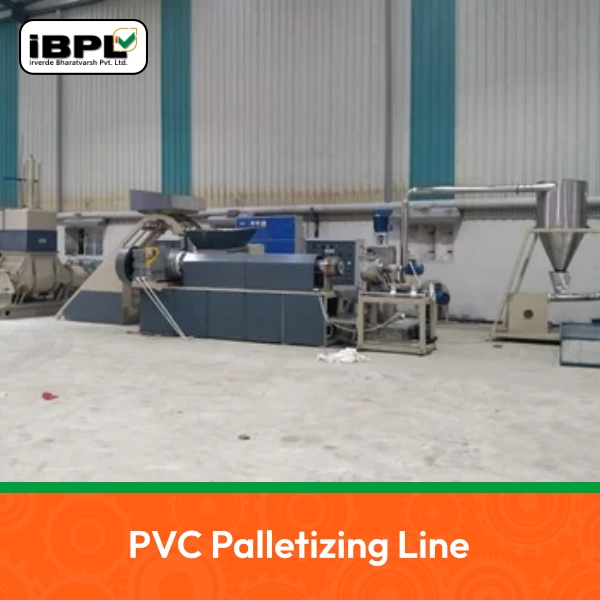

PVC palletizing line

Product Description
Technical Parameters

Waste Plastic HDPE Bottle Flake Pelletizing Machine Description:

Plastic flake pelletizing machine for waste plastic recycling is used to make plastic flakes into pellets or granules.

And Double stage plastic flake pelletizing machine is especially good for the raw material which contains high moisture, high impurities.

The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;

ZAnd the second extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.

Waste Plastic HDPE Bottle Flake Pelletizing Machine Process flow:

Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Waste Plastic HDPE Bottle Flake Pelletizing Machine Components:

Screw loader: Use to loading flakes into dosing feeding
Force Feeder: Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amount.
First Stage Screw Extruder: Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our extruder has great anti-corrosion resistant, wear resistant and long life time.
1# Full Auto Hydraulic Screen Changer With Double Working Position: Filter material impurity, to make production more stable.
Second Stage Screw Extruder: usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
2# Full Auto Hydraulic Screen Changer With Double Working Position: Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
Degassing: Force vacuum degassing system to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output pellets.
Noodle Type Pelletizer: The material strips extruded from the extruder die are cooled in a long water tank filled with cooling water or cooled in the air through a conveyor belt. The cooled material strips are processed in the pelletizer
Sink: It can fully cool the plasticized material better for next process
Silo: Storage the final pellets in a bag.

Detailed description of each item:

Screw Feeder: convey Plastic scraps into the main machine.
1# Extruding system: plasticizing material and exhausting gas.
1# High-speed Net exchanging system: filter material impurity, to make production more stable.
2# Extruding system: plasticizing material.
2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
Water ring pelletizing machine: cutting pellets in water.
Water tank: cooling pellets.
Dewater machine: make pellets dry.
Vibration sieve: remove bad pellet and keep good pellet.
Air Blower: convey good pellets into the silo.
Storage silo: keep pellet.

Waste Plastic HDPE Bottle Flake Pelletizing Machine Features:

Allow free assembling of the screw component, based on raw material type.
Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
High efficient force feeder ensures stable high capacity material feeding, low power consumption.
Main screw has vacuum exhaustion.
Water ring granulator machine, attached with dryer.
Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.

Model	Screw Dia（mm）	L/D	Capacity (kg/h)
PNHS-85/85	85	25-36	120-180
PNHS-100/100	100	25-36	200-250
PNHS-130/130	130	25-33	400-500
PNHS-160/160	160	25-33	450-700
PNHS-180/180	180	25-33	500-1000
