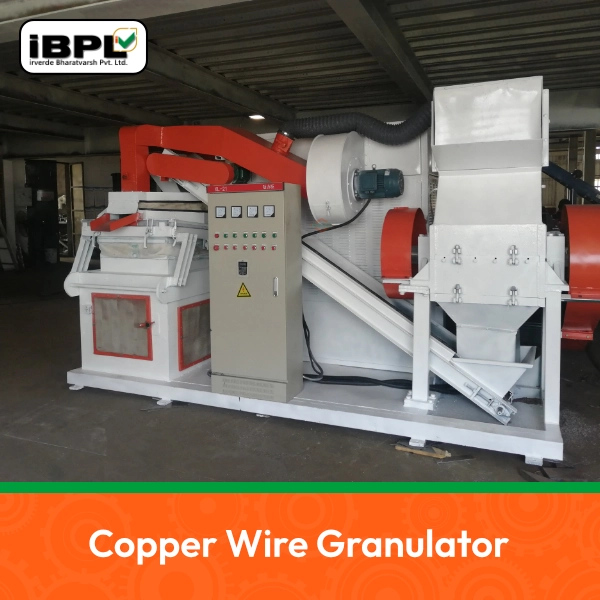

Copper wire granulator

Product Description
Technical Parameters

Copper Cable Granulator Applications:

Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200mm, such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables, and other miscellaneous cables which cannot be processed by wire stripping machine.

Mini Copper Wire Granulator Introduction:

Mini copper wire granulator is an integrated processing machine for recycling automotive wires, communication cables, and other types of miscellaneous wires and cables. The diameter of scrap cables it can process is 0.5-20mm. Mini copper wire granulator is suitable for homemade and small-scale recycling businesses.

Mini Copper Wire Granulator Features:

Integrated structure, small dimensions, easy to move, saving space.
Low power consumption, and stable performance.
Minimum copper recycling rate can reach 99%.
No water is needed, no dust, no environmental pollution.
Controlled by the electricity control panel, highly automatic.
The voltage can be customized as per your requirements.

Working Process of Mini Copper Wire Granulator:

Scrap wires or cables that are fed into the copper wire granulator machine are chopped by the chopper and become plastic pieces and copper granules. After air and vibration separation, copper granules come out of the front outlet and plastics out of the back outlet. Dust is sent to the dust collector via the air duct.

Sharp Blades or Blunt Blades:

The cutting blades of a cable granulator are not always good to be sharp. Depending on the types of wires we may need them to be blunt.

When processing air-fine wires and multi-strand wires, fixed blades and rotating blades must be very sharp, so that copper wires can be cut off, and copper granules will have high purity.

When processing single-strand and single-core wires, fixed blades must be sharp while rotating blades shall be a little blunt. Then the spacing between rotating blades and fixed blades will just hold wires without touching the cores. In this case, the generation of plastic-clad copper granules will be avoided effectively.

Model	PNCR-300	PNCR-400	PNCR-500	PNCR-1000
Capacity (Kg/H)	100-200	200-300	300-500	800-1000
Total Power (Kw)	30	60	99	160
Weight (Kg)	2800	6600	9000	15000
Dimension (m)	32.12.8	63.53.2	10.19.65.7	21.59.55.7
