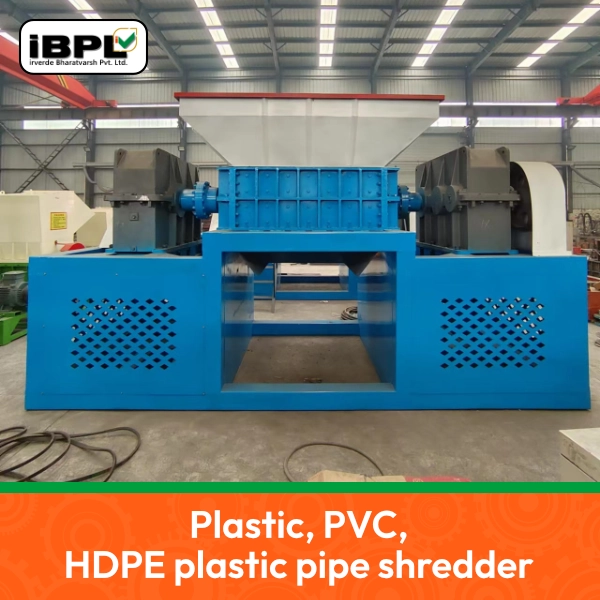

Plastic, PVC, HDPE plastic pipe shredder

Product Description
Technical Parameters

Big Diameter Plastic Pipe Shredder Machine Application Areas:

PNGS series plastic pipe shredder is suitable for shredding PE pipe, PVC pipe, PP pipe, ABS pipe, large diameter HDPE pipe, and profiles whose diameter is ≥ 1200mm and length is ≤ 6000mm.

Big Diameter Plastic Pipe Shredder Machine Description:

PNGS big-diameter plastic pipe shredders are developed for difficult large-diameter plastic PE, PP, PVC, and HDPE solid wall pipes, bundles of small pipes, and profiles. These plastic pipe shredders have a unique design of horizontal feeding box, not limited by the length of the pipe. The maximum length of the pipe can be determined by the customer to determine the machine model. It can also be used together with a plastic crusher and pulverizer according to the discharge requirements to form a complete set of plastic recycling lines. High efficiency, simple and safe operation.

Big Diameter Plastic Pipe Shredder Machine Working Principle:

Put the material into the feeding trough and then push the material to shred with a hydraulic pushing device. After the shredder, the conveyor transports the shredded material into the crusher for secondary crushing. In combination with other Irverde Bharatvarsh Pvt. Ltd size reduction equipment such as granulators and pulverizers, we are able to provide a complete turnkey HDPE pipe recycling solution.

Big Diameter Plastic Pipe Shredder Machine Components:

Long Hydraulic Ram Travel: Ram travel as long as 6 meters, allows long pipes to be fed in without pre-cutting – Equipped with a powerful hydraulic pack – capable of handling heavy and large-diameter pipes
Rotor: – V-Cutting Rotor Design- with staggered cutter positioning Heat-treated rotor blades – special dc53 steel, four edges use before replacement – Adjustable counter blades- cutter clearance can be re-positioned
Automatic Feeding Flip: Hydraulic-powered feeding flip for loading heavy and large-diameter pipes
Double Drive Device: Equipped with hardened gear double reducer, strong power, with efficient shredding capacity. Large ultra-thick pipe can also be equipped with a hydraulic coupling to prevent overload damage to the spindle rotor as well as the motor.
Dual Electronic Control Cabinets: Touch screen remote control + conventional electronic control cabinet, even if the touch screen remote control fails, the conventional control cabinet keeps the machine running
Hydraulic System: The pressure and rate of flow can be adjusted according to different materials.

Big Diameter Plastic Pipe Shredder Machine Features:

Horizontal shredder for shredding longer and larger materials, diameter less than 250-1600mm, length less than 6000mm. materials without cutting can be a one-time feeding.
Horizontal shredder adopts single shaft drive system, which greatly improves the capacity and shredding efficiency.
Built-in hydraulic system to push the material to the spindle shredding, with a key start, emergency stop, overload protection and other protective features to ensure the stability of the machine operation and maintain high efficiency.
The electric control system is safe and easy to operate on the basis of a key start, emergency stop, overload protection and other protective functions to ensure the stability of machine operation and maintain high efficiency.

Model	PNGS-800	PNGS-1000	PNGS-1200	PNGS-1500	PNGS-2000
Shredding Chamber Size(mm)	750*790	960*790	1140*1160	1340*1360	1540*1540
Rotor diameter (mm)	850	1030	1280	1500	2000
Speed (RPM)	40	36	30	23	17
MAX Pipe diameter (mm)	630	800	1000	1200	1600
Hydraulic System Motor (kw)	11	15	15	15	18.5
Main Motor (kw)	30+30	37+37	45+45	55+55	75+75
Output (kg/h)	800-1000	1000-1500	1200-1800	1500-2000	2000-3000
